Installation
Before you begin to installation, make sure that you set your Windows to English (United States)
IP Addresses, Usernames, and Passwords presented in this section are for illustrative purposes only.
RealityHub installation is a straightforward process:
  • First, find the “Setup-RealityHub-1.3.exe” setup file and start installing.

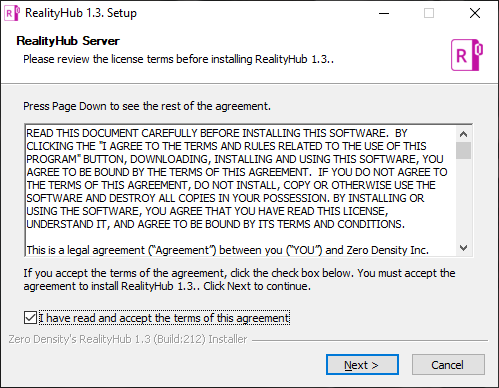

Terms and Conditions
  • After approving the terms and conditions, the installation wizard will guide you through the process by clicking on the Next button.

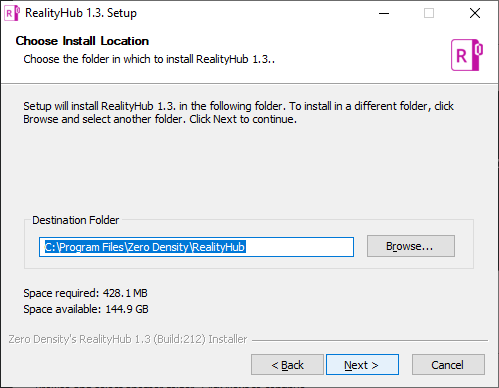

Installation Path
  • Select an installation path or leave it as a default as shown on the image above by clicking Next
Some users may consider the following settings relatively advanced. If you are not certain about the following settings, you may prefer to leave them in their default state.

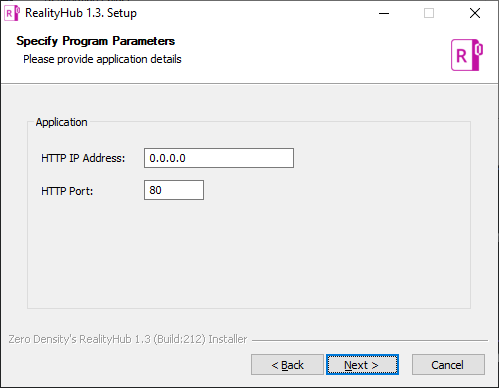

Application Patameters
  • Configure the application parameters shown on the image above or click Next for default settings.
    • HTTP IP Address: Type the IP address you prefer to RealityHub listens. If you leave it as 0.0.0.0, RealityHub listens to all the IP addresses.
    • HTTP Port: RealityHub Server accepts connections via HTTP port number 80.

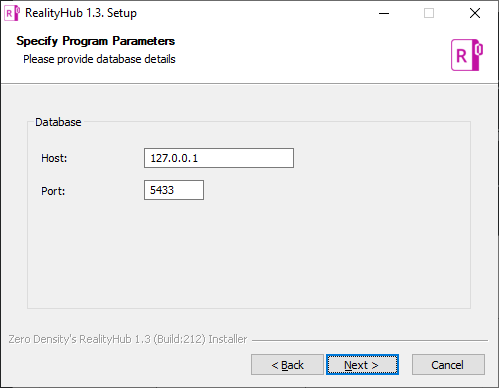

Database Configuration
  • For standard database configuration, leave the Host and Port parameters in their default state as shown on the image above and click Next
If your system requires hosting the RealityHub Database on another server, don’t hesitate to contact our Support Team.

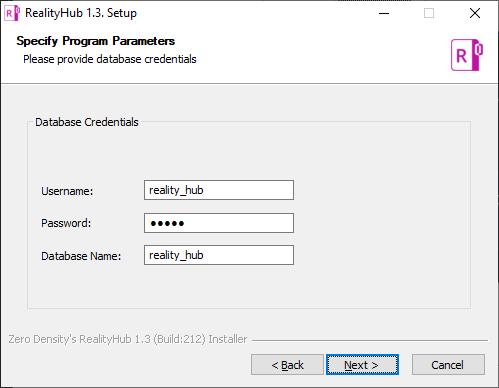

Database Credentials
  • Configure your database credentials or click Next to accept default settings.
  • Set a name for the database or click Next for default settings.
The default password for Database Credential is: 12345

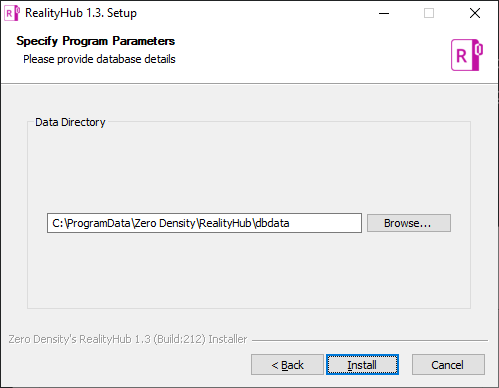

Database Directoty
  • Choose the directory where your data is stored or click the Install button for default settings.
After a successful installation, the RealityHub Server starts automatically. Launch your web browser and go to the RealityHub web interface via http://<Your RealityHub Server IP Adress>/
Default administrator credentials for RealityHub login: Username: admin / Password: realityhub
Also, see: Reality Loader
