Form Builder Interface

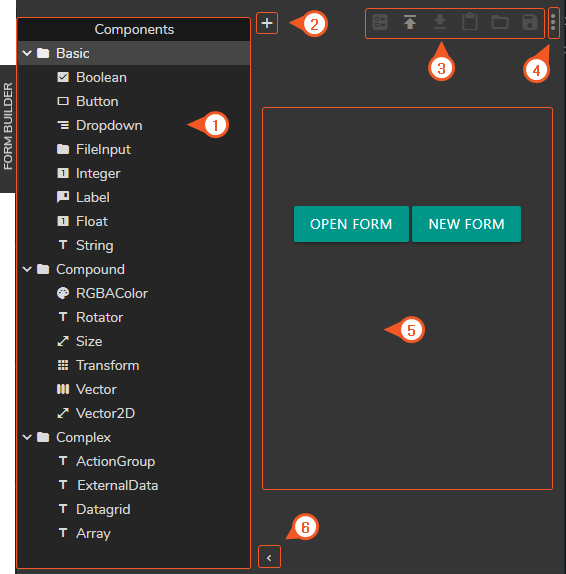

Form Builder UI
1. Components: Building blocks to create data-driven content.
2. New Form: Creates a new Template Form
3. Form Management Buttons:
  • Chanel Settings: This function allows you to assign channels to the Form.
  • Import: You can import your Template Forms via this button
  • Export: This button exports your current Template Form as a *.JXD file.
  • Copy JXD: Copies the Form structure and logic to the clipboard in JSON format, so you can embed this JSON into your Blueprint as a string variable called JXD. When you launch your project, the Form will be imported automatically to RealityHub. This feature lets you ship your Forms to different systems with your Unreal *.uproject.
  • Open: Opens a template form
  • Save: This button saves your current Template Form
4. Form Builder Menu:

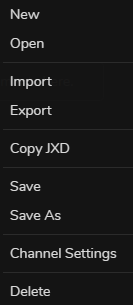

Form Builder Menu
  • New: Creates a new Template Form
  • Open: Open an existing Template Form from the RealityHub database
  • Import: Imports saved Template Form
  • Export: Imports current Template Form
  • Copy JXD: Copies the Form structure and logic to the clipboard in JSON format, so you can embed this JSON into your Blueprint as a string variable called JXD. When you launch your project, the Form will be imported automatically to RealityHub. This feature lets you ship your Forms to different systems with your Unreal *.uproject.
  • Save: Saves current Template Form.
  • Save As: Save a current Template Form as a different file
  • Chanel Settings: This function allows you to assign channels to various forms.
  • Delete: Deletes current Template Form from database
5. Form Area: You can drag & drop your Components, Actions, and Properties to this area.
6. Expand: A button for opening and collapsing components module
