Example Configuration
This chapter aims to provide you with steps of an example User Management configuration. It is possible for you to employ a different approach when organizing your users. For any further questions feel free to contact our Support Department.
For a better-organized workflow, we recommend you create an administrator account and manage your organization with it.

Creating an Administrator

  • Activate the User Management module by going to Menu > Windows > User Management

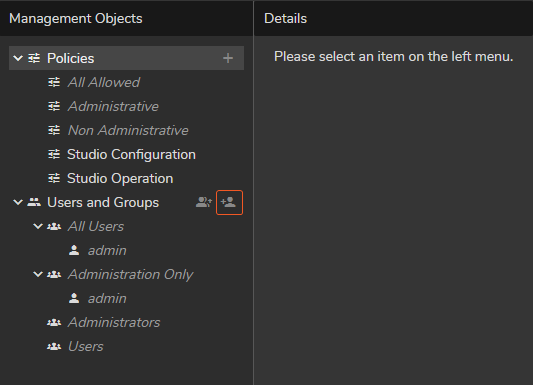

Default User Management Module After First Installation
  • Expand the Users and Group property
  • Click on the Add new user icon

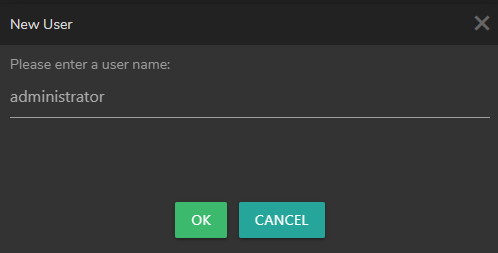

  • Enter a username and click OK
  • Go to the Administrator's user's details on the left, click on its name

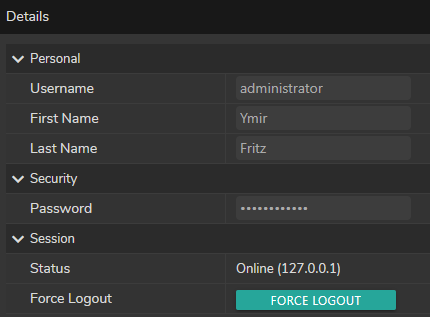

User Details
  • Define personal information (First Name, Last Name, Password) in the Details section
You need to define a password for each newly created user to allow that user to login into the system. Later users can change their password.
  • Go to the Group Assignment (Member Of) section

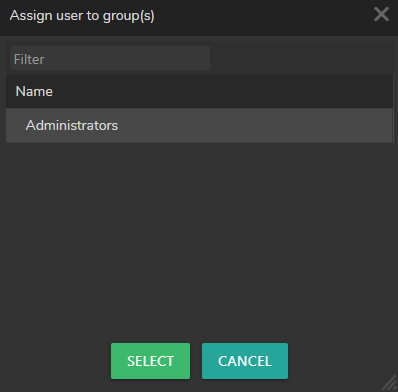

  • Click on the plus icon, select the Administrators, and click on the SELECT button
Reserving License
  • Go to the Reserved Licenses section
  • Click on the + (Plus) icon
  • In the pop-up menu, select the licenses you would like to reserve for the user and click on the OK button
  • Delete the Studio Configuration and Studio Operation policy presets

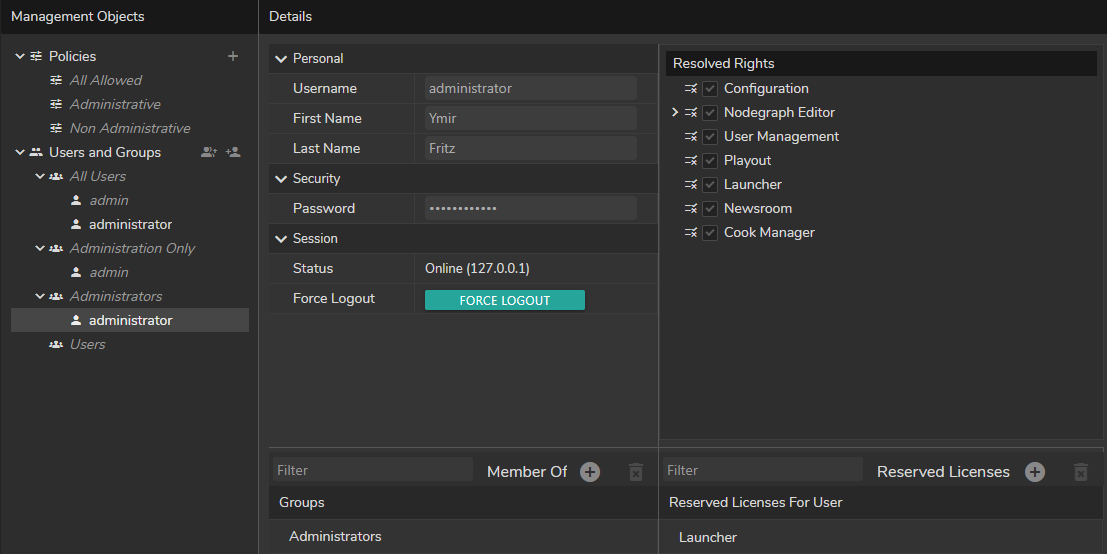

Administrator Details
Your User Management configuration should look like in the image above.
  • Log out from the admin account
  • Login to the RealityHub with the new administrator account

Creating Groups

To create groups:
  • Go to Users and Groups
  • Click on the Add new group button as shown in the image above

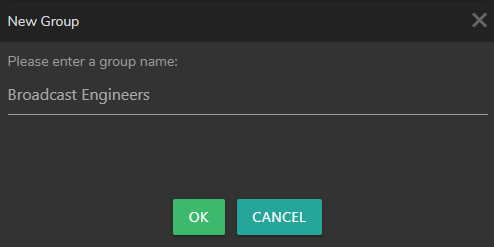

  • Enter a group name and click OK
  • Repeat the same process depending on your studio requirements
For the sake of example, we added three user groups as shown in the image above.

Creating Policies

To create policies:
  • Go to the Policies branch
  • Click on the Add new policy button

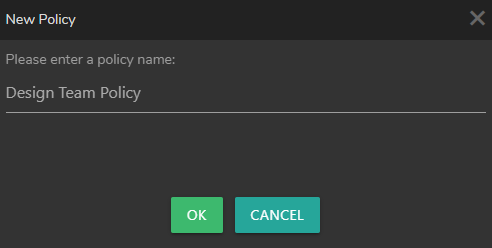

  • Enter a policy name and click OK

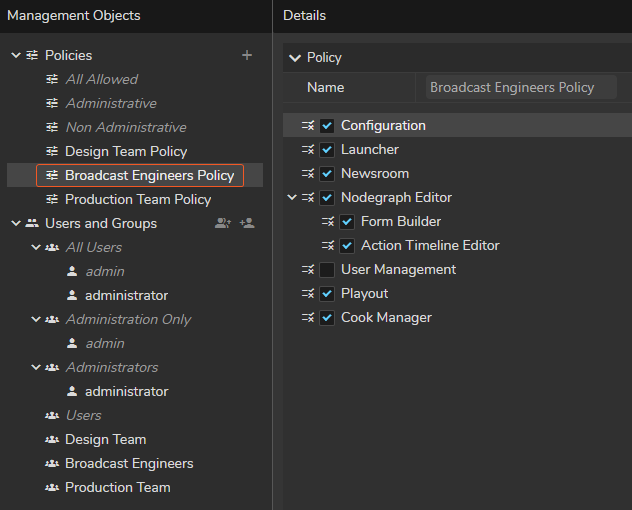

Policy Details
  • Select one of the policies you defined
  • Configure it in accordance with your plan as shown in the image above.
  • Repeat the process for other policies

Creating New Users

To create new users:
  • Go to Users and Groups property group
  • Click on the Add new user button

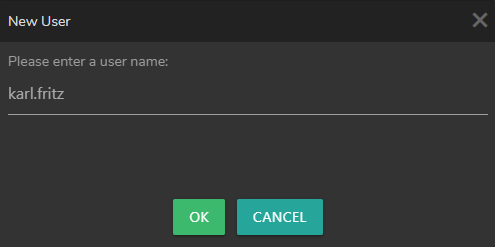

User Name
  • Define a new username as shown in the image above.
  • Repeat the process for other users you want to add

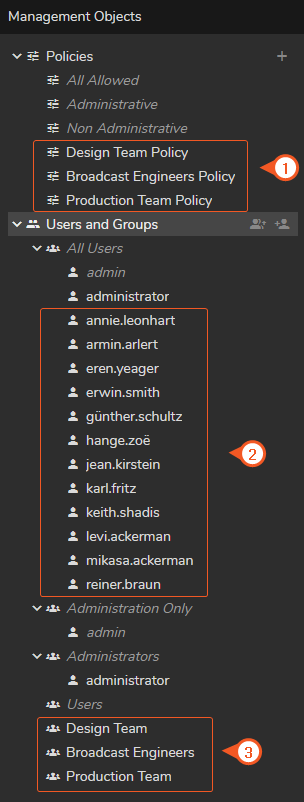

Management Objects
As the image above shows:
  1. 1.
    Three (3) different policies are created and modified
  2. 2.
    Twelve (12) users are created, and their details (Name, Surname, Password) are defined
  3. 3.
    Three (3) different user groups are created

Assigning Users to Groups

Please keep that in mind, a user can be a member of multiple groups.
To assign users to newly created groups
  • Click on the group name
  • Go to the Members section inside the Details panel
  • Click on the + (Add) icon

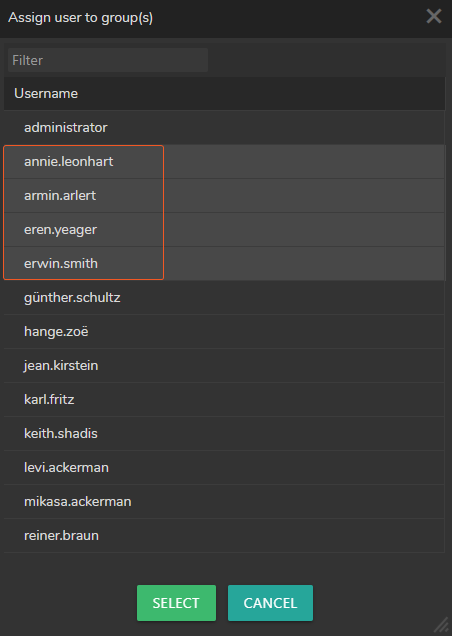

  • Select a user by clicking on its name or select multiple users by holding CRTL + Left Mouse button, then click the Select button
  • Repeat the same process for assigning multiple users to different user groups

Defining User Groups Policy

Groups can have multiple policies.
To assign policies to user groups:
  • Click on the group name
  • Go to the Policies section inside the Details panel
  • Click on the + (Add) icon

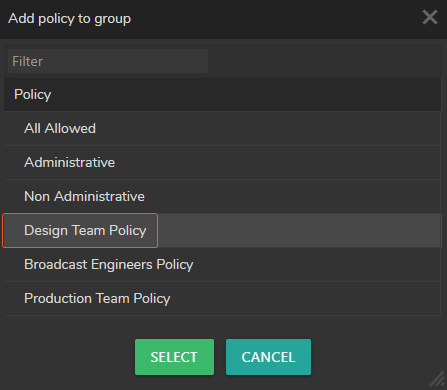

  • Select a Policy by clicking on a Policy name or select multiple policies by holding CRTL + Left Mouse button, then click the Select button.
