RGraph

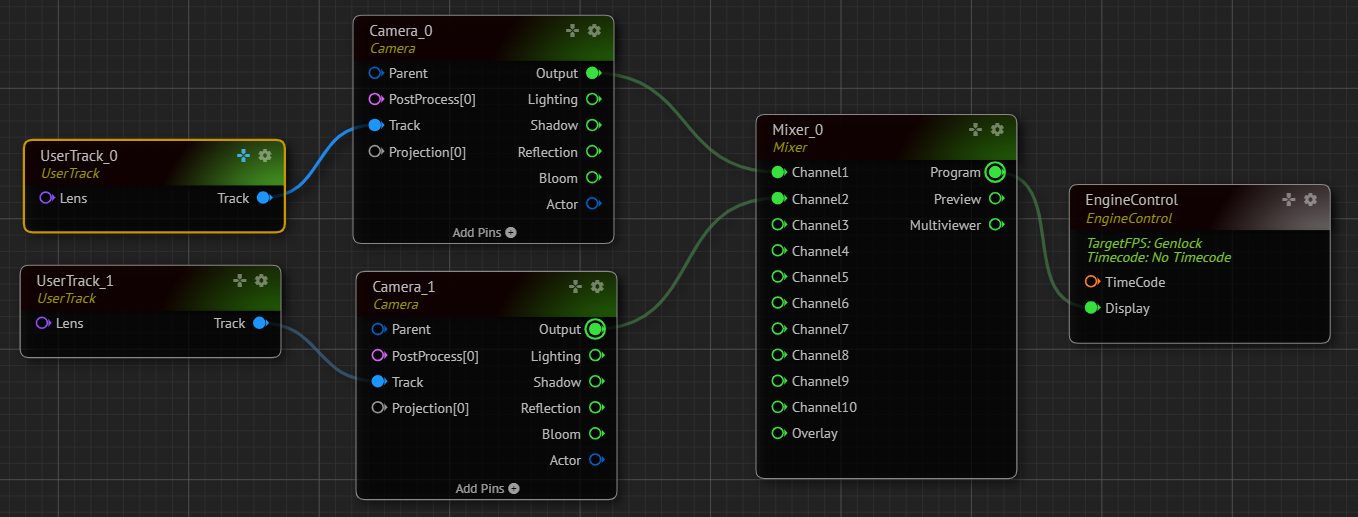

Example RGraph
RGraph is a logic-based pipeline, as shown in the image above.

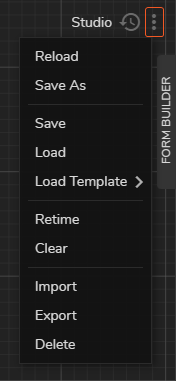

Nodegraph Menu

Nodegraph Menu
In the Nodegraph Menu, you can manage your RGraphs:
  • Reload: This action reloads your current RGraph
  • Load: This function calls your saved RGraph from the RealityHub database.
  • Load Template: This function calls one of the shipped RGraph templates such as Composite Cyclorama Keyer and tutorial-related RGraphs like UMG Business.
  • ReTime: ReTime sends a series of commands to the selected Engine to sync its video input and output
  • Clear: Clears your Nodegraph view
You can store and recall RGraphs as a file (*.rgraph), which contains information about your Nodegraph’s state, such as a node’s properties, functions, input/output connections, and node’s position inside the Nodegraph.
RealityHub keeps your saved RGraphs in its database. Please keep that in mind: Deleting an RGraph also removes it from the RealityHub database. For more details, visit Database Backup and Restore.

RGraph History

RGraph History is the module where you examine, sort, and restore your RGraph operation entries.
RGraph History Menu
To reach the RGraph History:
  • Click on the RGraph History button as shown in the image above

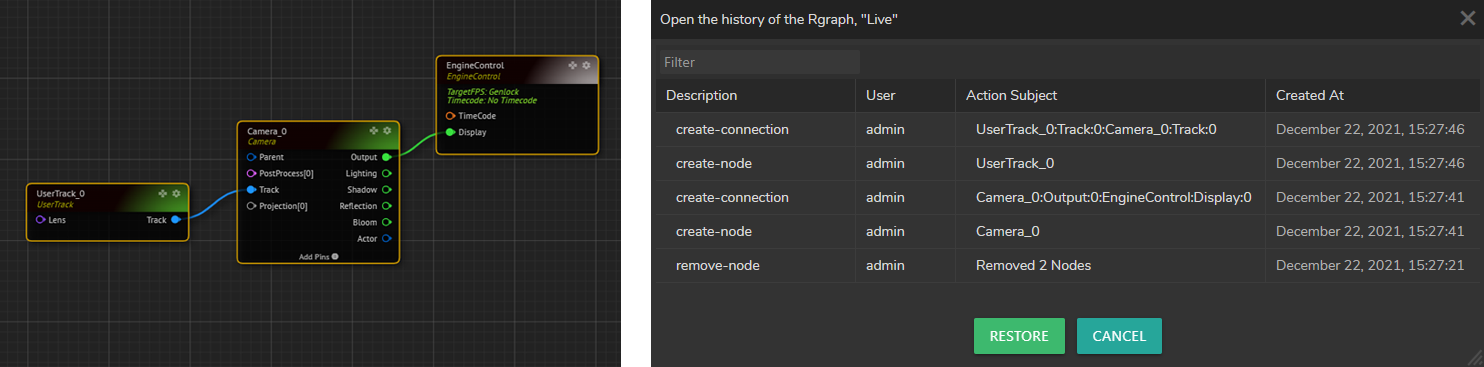

RGraph History Example
As soon as you click on the RGraph History button, the RGraph History Menu pops up and shows the description of the operation, which user conducted it, action subject, and creation time as shown on the image above.

RGraph History Details

  • RealityHub stores your RGraph History in its database. See Upgrading
  • If you delete an RGraph, its RGraph History also gets erased.
  • If you export an RGraph as a file (*.rgraph), the exported file does not include RGraph History.
  • It collaborates with Gang Mode
