Before you begin to installation, make sure that you set your
English (United States)
IP Addresses, User Names, and Passwords presented in this section are for
RealityHub installation is a straightforward process:
First, find the
” setup file and start installing.

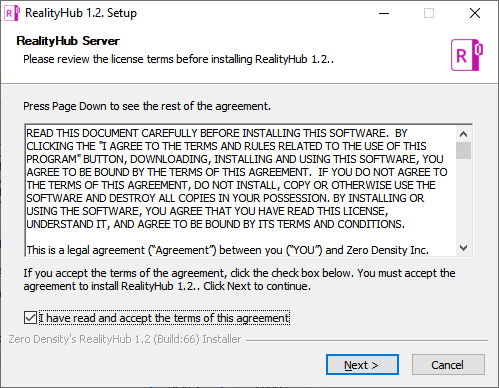

After approving the terms and conditions, the installation wizard will guide you through the process by clicking on the

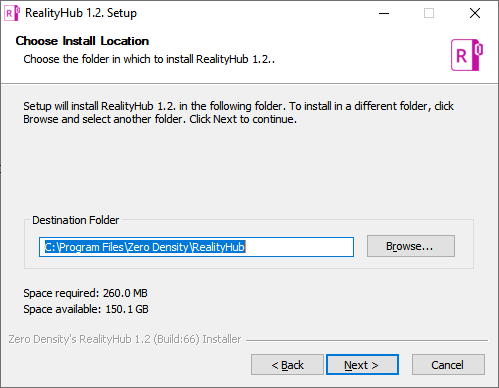

Select an installation path or leave it as a default as shown on the image above by clicking
Some users may consider the following settings relatively advanced. If you are not certain about the following settings, you may prefer to leave them in their default state.

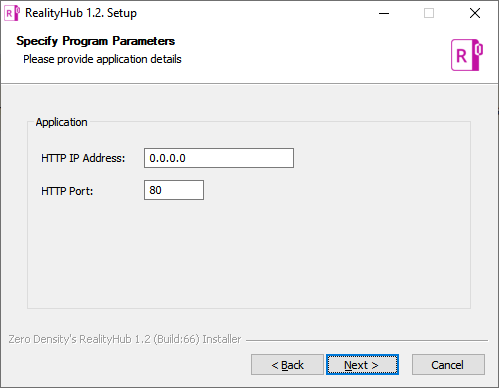

Configure the application parameters shown on the image above or click
HTTP IP Address
: Type the IP address you prefer to RealityHub listens. If you leave it as 0.0.0.0, RealityHub listens to all the IP addresses.
: RealityHub Server accepts connections via HTTP port number 80.

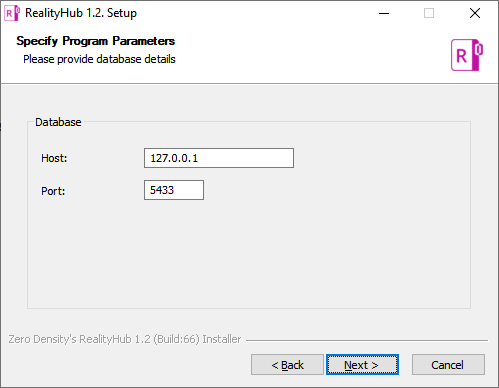

For standard database configuration, leave the
parameters as in their default state as shown on the image above and click
If your system requires hosting the RealityHub Database on another server, don’t hesitate to contact our Support Team.

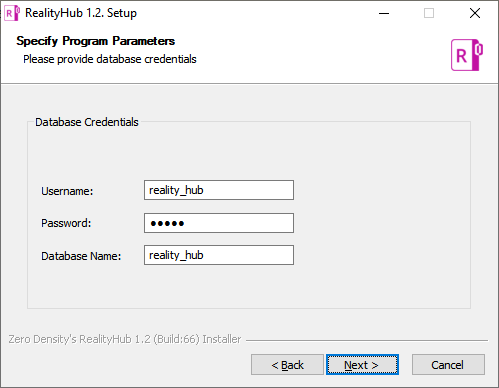

Configure your database credentials or click
to accept default settings.
Set a name for the database or click
for default settings.
The default password for Database Credential is:

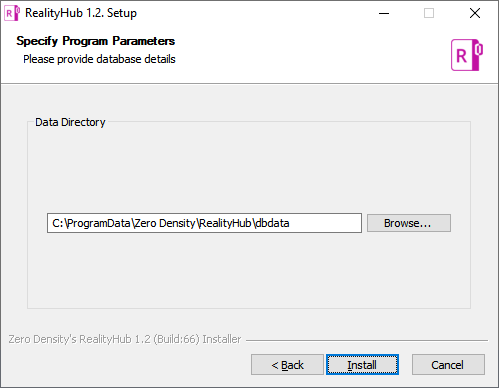

Choose the directory where your data is stored or click the
button for default settings.
After a successful installation, the
starts automatically. Launch your web browser and go to the RealityHub web interface via
http://<Your RealityHub Server IP Adress>/
Default administrator credentials for RealityHub login: Username:
