Database Backup and Restore
RealityHub stores your Rgraphs (*.rgraph), Actions (*.rha), and Forms (*.jxd) inside the dbdata folder in the following file path: <pre>\…\Zero Density\RealityHub\dbdata

Database Backup

To backup your database:

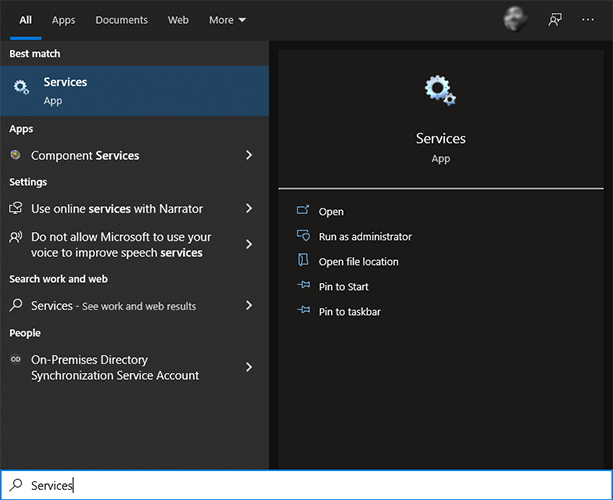

  • Go to Windows > Services
  • Right-click on the RealityHub Database service and select the stop
  • Right-click on the RealityHub Service service and select the stop
  • Go to <pre>\…\Zero Density\RealityHub\dbdata
  • Copy and paste the dbdata folder to a different directory for restoring.

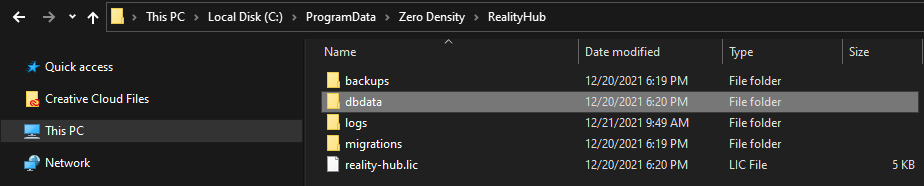

The image above shows the default dbdata folder path. If you change the database folder path during the Installation and Configuration, make sure that you check that specific folder path.

Database Restore

Please keep that in mind, restoring a database is possible with matching RealityHub versions. Trying to restore different versions of backups such as from 1.1 to 1.2 may disrupt RealityHub’s functionality.
To restore your database:
  • Stop all the Engines and quit from RealityHub
  • Go to Windows > Services
  • Stop the RealityHub Database and RealityHub Service
  • Go to the <pre>\…\Zero Density\RealityHub\
  • Delete the freshly installed dbdata folder and paste your backup.
  • Go to Windows > Services
  • Start the RealityHub Database and RealityHub Service
