In RealityHub terminology, a Host refers to a server configuration that hosts an Engine; in other words, it is the computer you install the Reality Engine/Unreal Engine Vanilla.

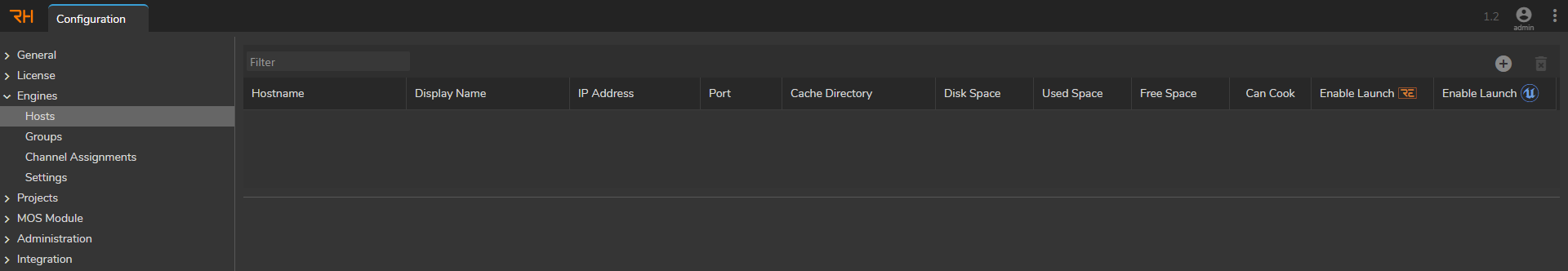

The image above shows the default Hosts interface. To add a Host:
- Go to Main Menu > Configuration
- Select the Hosts under the Engines
To find your hostname:

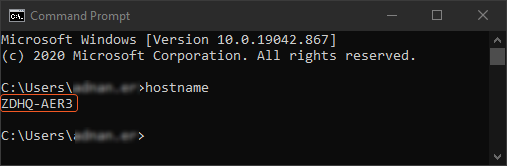

Windows Command Prompt Window
- Run the Command Prompt on your Windows
- Type hostname and click enter
- Copy your hostname

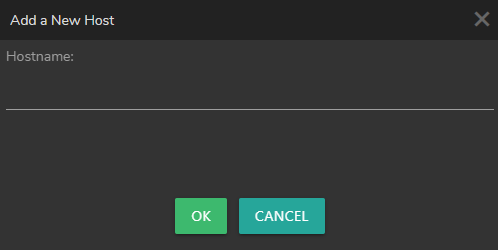

New Host Window
- Turn back to Hosts configuration inside the RealityHub
- Click ➕ to Add a New Host
- Paste the Host Name you copied earlier
- Click on the

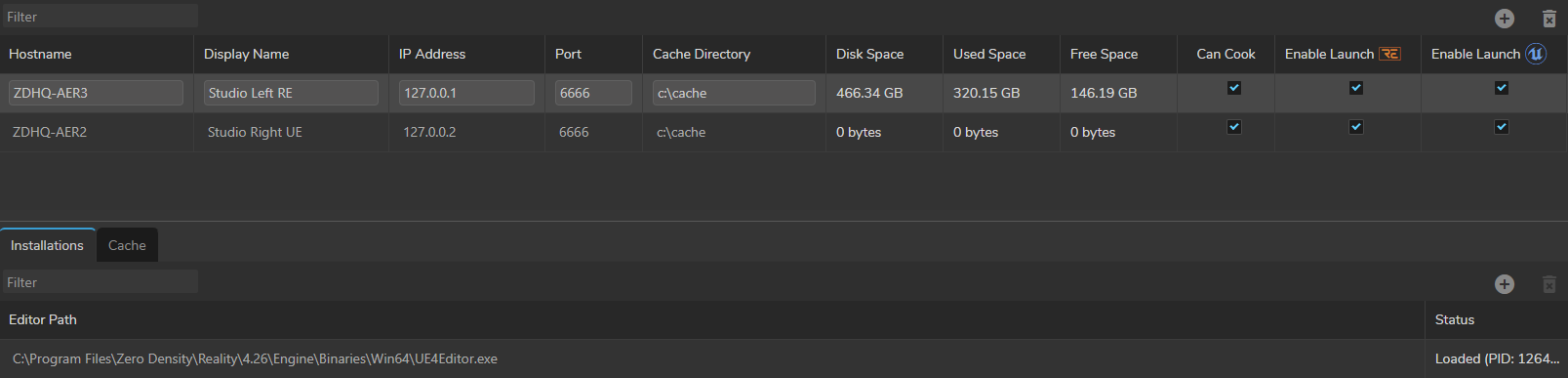

As soon as you define a hostname, RealityHub adds a default Display Name, IP Adress, Port, Cache Directory, and Installations, as shown in the example image above.
Display Name: You can define a specific name for your Host to better organize your setup. Your computer’s hostname (in our case, it’s ZDHQ-AER3) might not help recognize the purpose of your Engine.
To set an example, if you are utilizing multiple engines in a studio, you might prefer to define a specific name for your Hosts, such as Studio A, Camera B, etc.
- IP Adress: IP address of a server you installed the Engine.
- Port: 6666 is the default port for the Reality Engine. If you changed the port number during the installation, you must provide that specific port number. Also, check Unreal Engine Configuration
- Cache Directory: A directory you can use for caching your Projects
- Can Cook: Disabling and enabling the Cook operation for your Engines. See Cook Manager
- Enable Launch: This option gives you the ability to specify which Engine can be launched. You can choose both Reality Engine and Unreal Engine Vanilla at the same time.
- Installations: It is the Engine Installation directory where UE4Editor.exe is located in. You can choose or redefine the directory that your Engine(s) is installed.

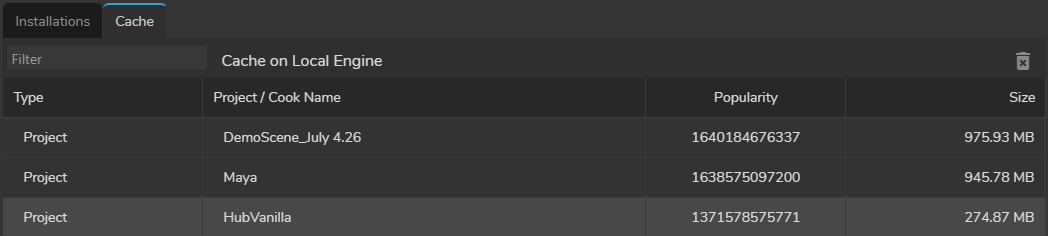

You can manage your cache files in the Hosts sections as shown in the image above.
