Open/Close Door
In this tutorial, we will learn the basics of using function exposing. We will rotate the door using the Timeline component. This tutorial focuses on three topics:
  • Using ZD Actor Component.
  • Using Blueprint Events.
  • Using timeline function on blueprints.

Getting Started

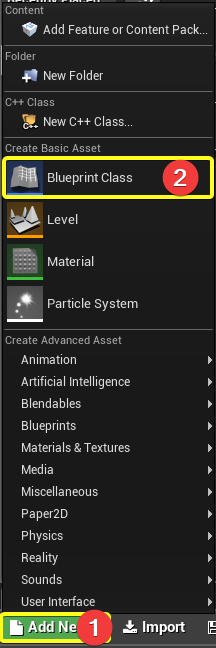

  • Click on ADD NEW and then BLUEPRINT CLASS

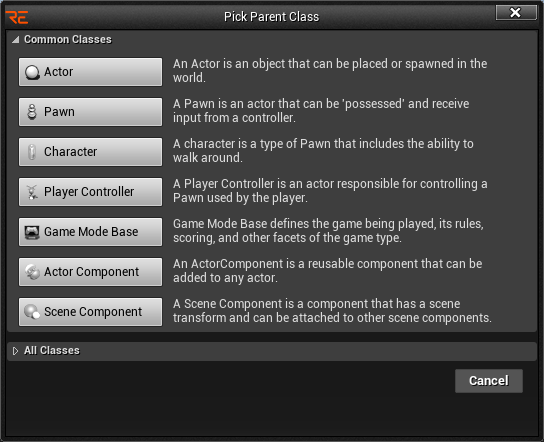

  • Click Actor
  • Select actor on Content Browser. Rename it as RotatingDoorExample.
  • Click ADD COMPONENET and in the search bar find and select the ZDACTOR
  • Click ADD COMPONENT in the search bar find and select the STATIC MESH

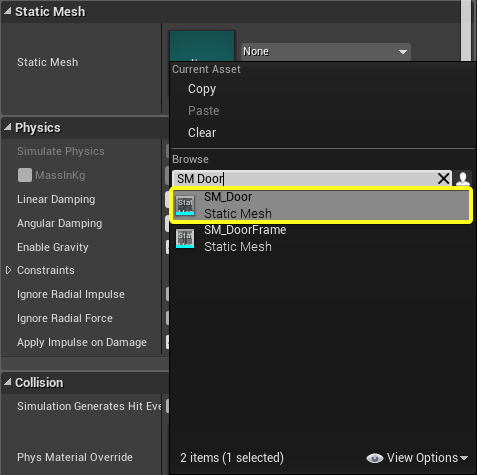

  • Rename Static Mesh Component as Door Static Mesh. On the Details Tab(right side of screen) click Static Mesh tab and select SM_Door as static mesh.
  • Click Event Graph.

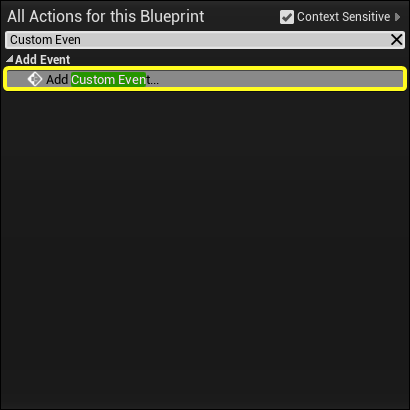

  • On the Event Graph, right-click into space and search for "Custom Event" and click Add Custom Event.
  • Create two Custom Event. Rename these as Open Door Event and Close Door Event.

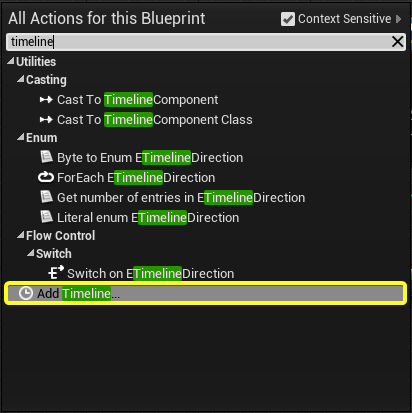

  • Right click into space and search for “Timeline” and click to Add Timeline.

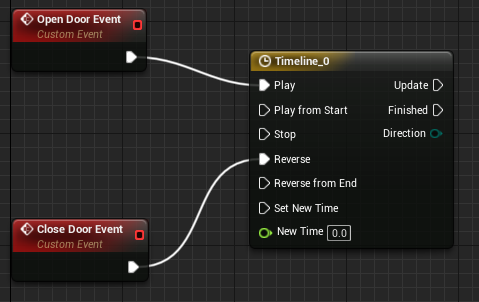

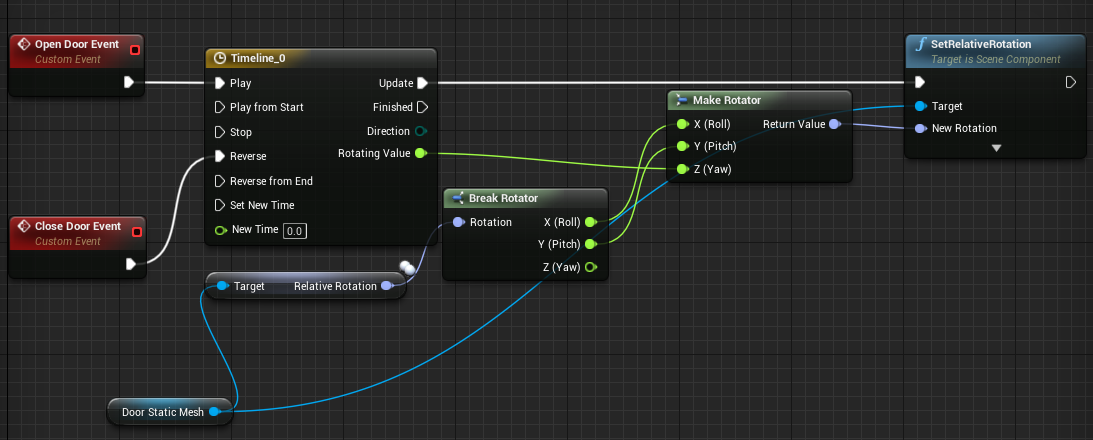

  • Connect the events shown as below. After connect the pins, Double Click on Timeline_0.

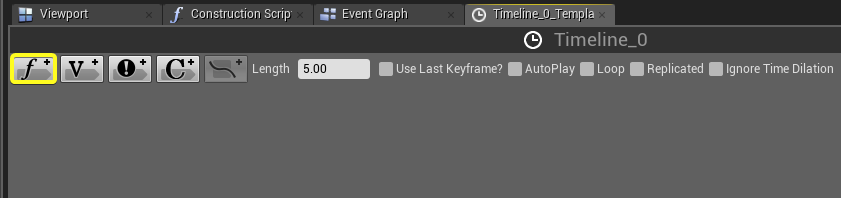

  • In the timeline click on Add Float Track.

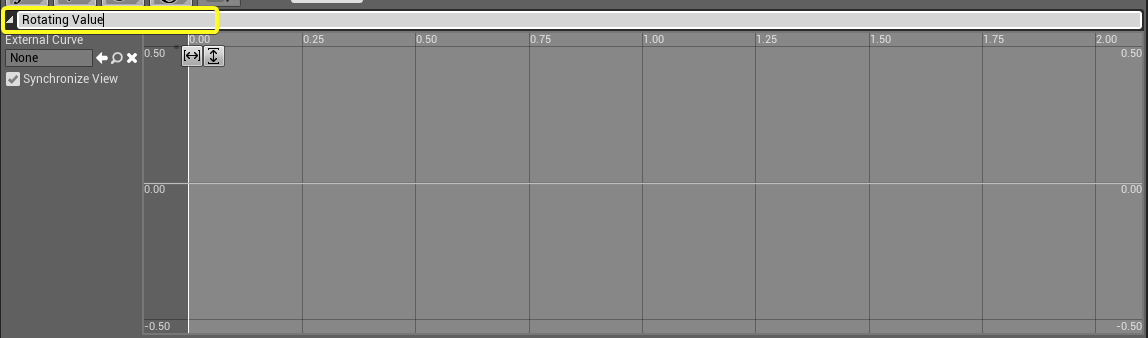

  • After click on button, rename it as Rotating Value.

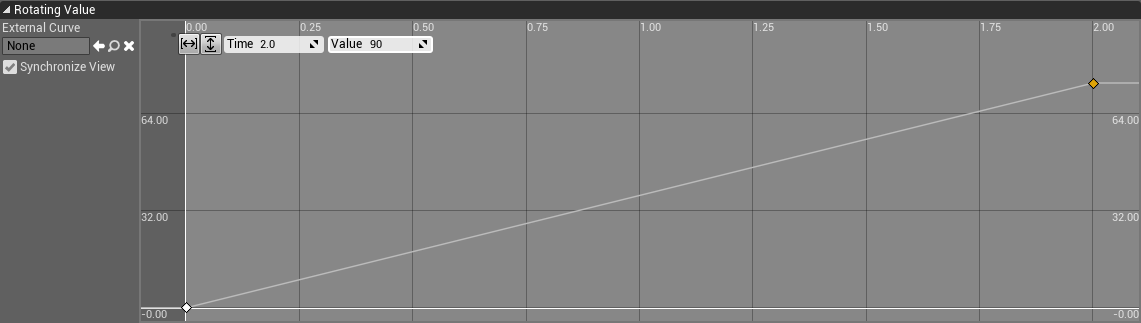

  • Right click on the space Add Key to CurveFloat.

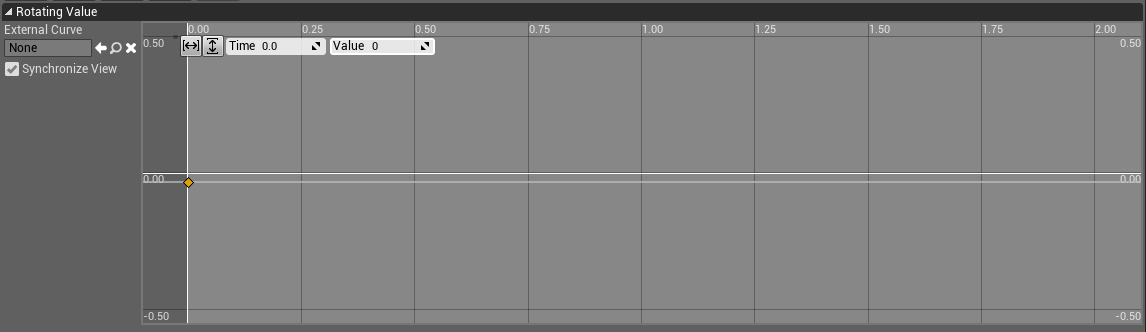

  • Set Time and Value to 0.

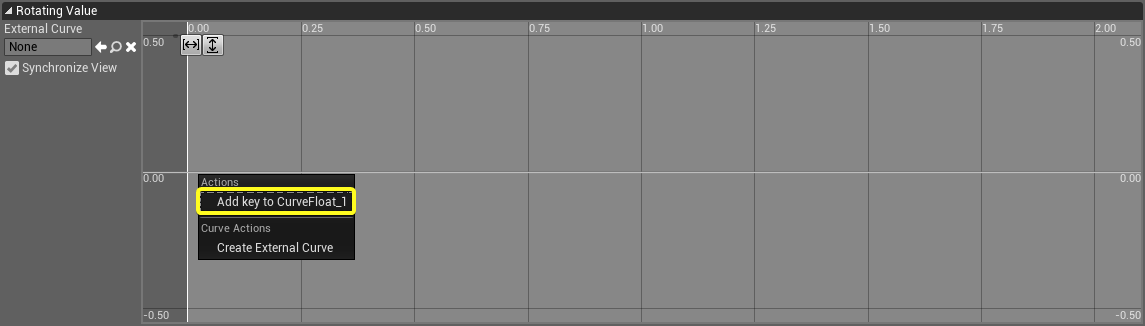

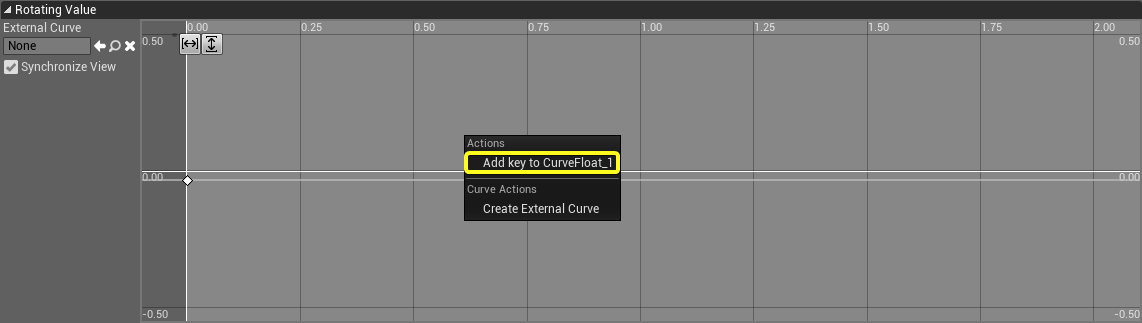

  • Right Click onto space, and Click Add key to CurveFloat_1.
  • Set Time to 2 and Value to 90.
  • Click On EventGraph and connect the nodes as shown in below.
  • Click on ADD NEW and then select the FUNCTION

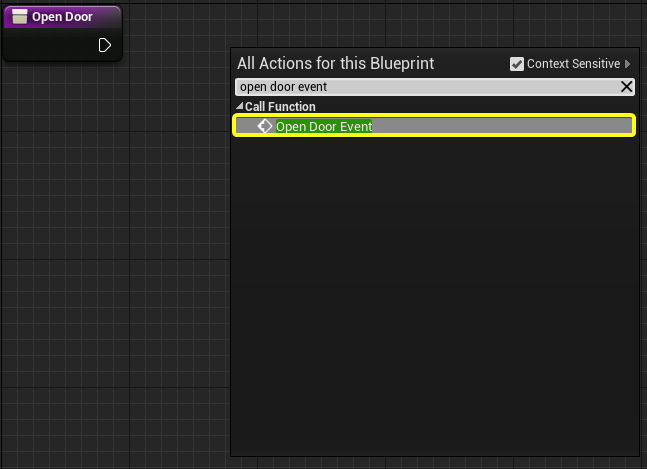

  • Rename the function as OpenDoor. Right Click on space and search for Open Door Event.

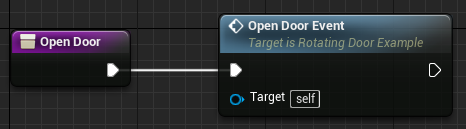

  • Connect the nodes shown as in below.

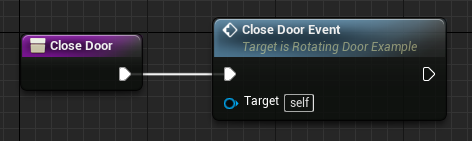

  • Create another function. Rename as Close Door. Call Close Door Event.
  • Click COMPILE and then SAVE. Close the blueprint.

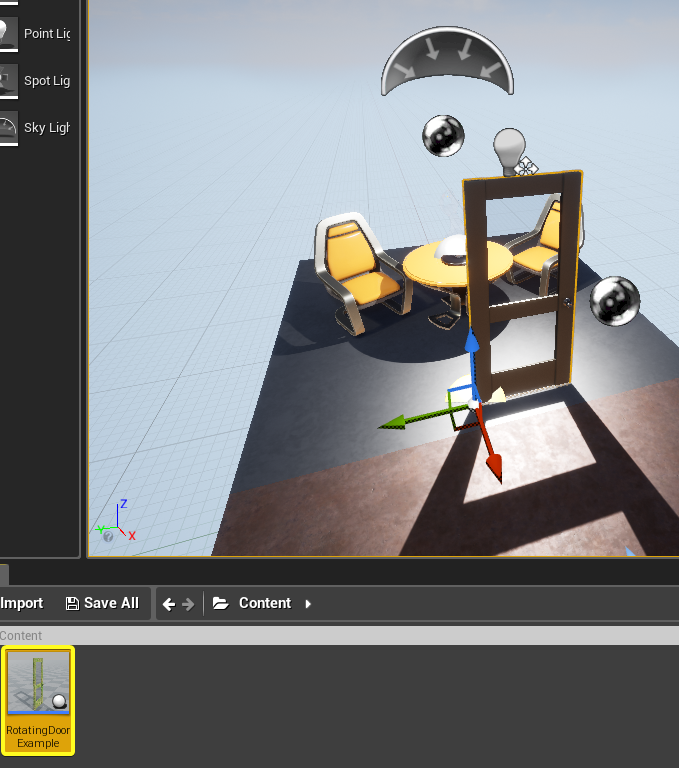

  • Move RotatingDoorExample into the level.
  • Launch Reality Setup. Click Play on Reality Editor.

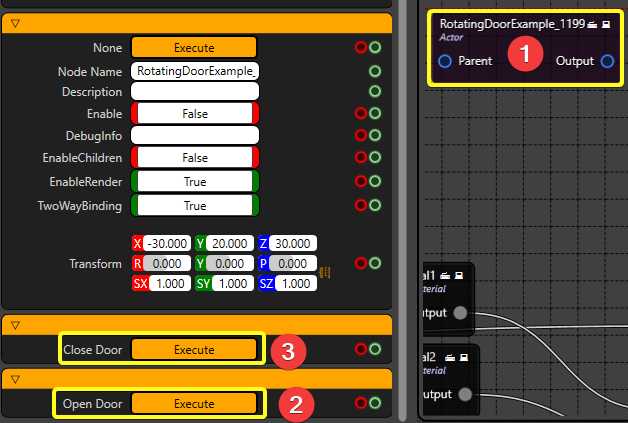

  • Click RotatingDoorExample on Reality Setup graph. Click Open Door and Click Close Door. Investigate the level.
