Exporting Custom Blueprint Node
Reality Engine supports custom nodes on Reality API. To export a custom node into the Reality API, a new class derived from ZDBlueprintNode must be created.
The blueprint class must be derived from ZDBlueprintNode class.

Implementation

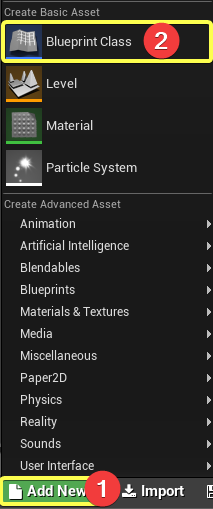

  • To create a new blueprint node asset, Click ADD NEW then BLUEPRINT CLASS

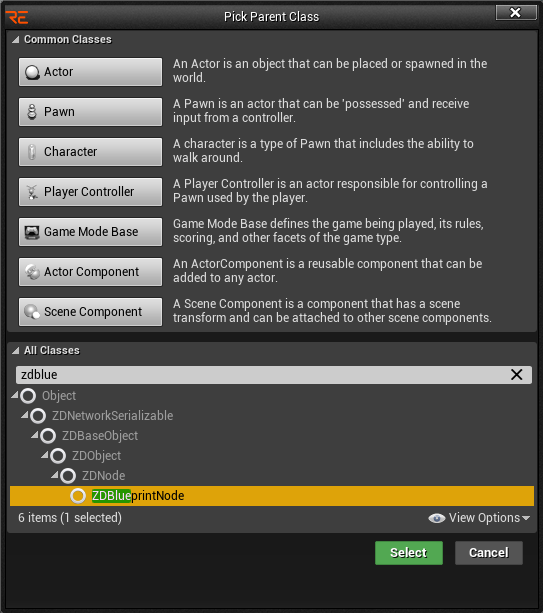

  • Pick ZDBlueprintNode as parent class, which you can find it under All Classes
  • Object classes can be renamed, like MyBlueprintNode.

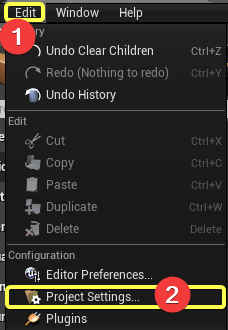

  • Click EDIT → PROJECT SETTINGS

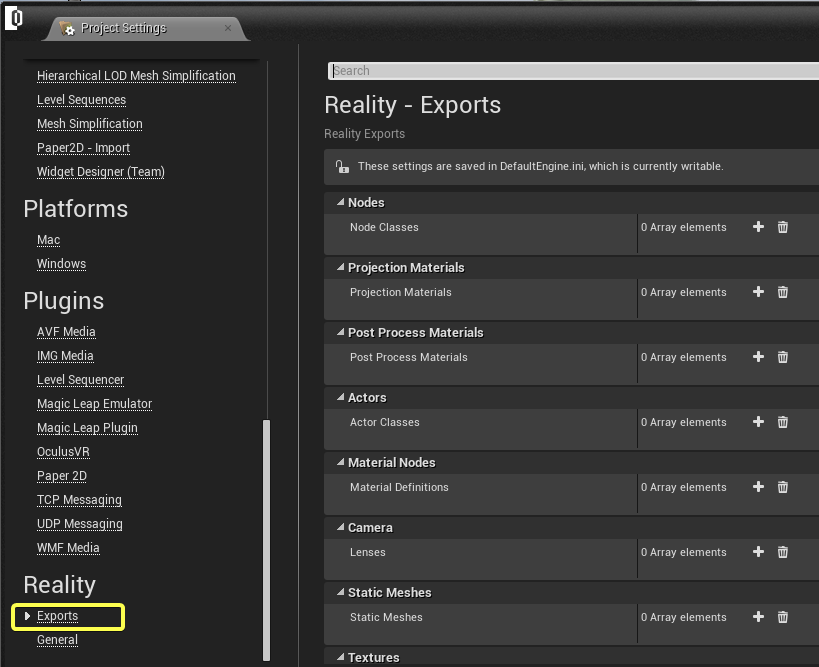

  • Scroll down, click Exports under Reality tab.

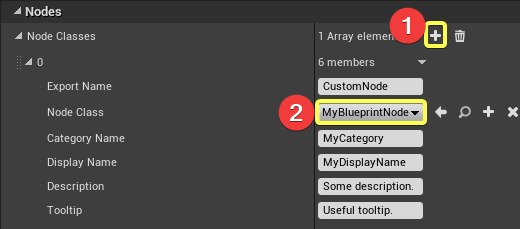

  • Click ➕ under Nodes tab, select the Node Class and close the Project Settings window.
  • Launch the Reality Control and press F7 to launch Reality Setup.
  • Click Play on Reality Editor.

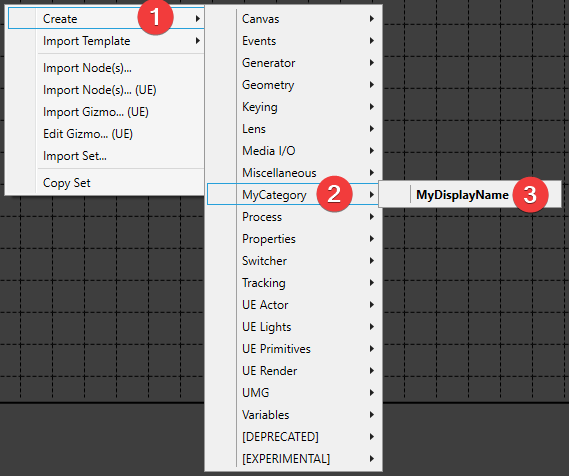

  • Right click space on Reality Setup. Click CREATE → MY CATEGORY → MYDISPLAYNAME
  • Your node will be shown on Reality Editor.
