HP Performance Advisor

HP Performance Advisor is a utility created by HP which provides detailed system information and access to the computer’s BIOS settings. It is recommended to download and install HP Performance Advisor via the following link: HP Performance Advisor
Install HP Performance Advisor to your Reality Engine Server. It will be installed by default in C:\Program Files (x86)\HP Performance Advisor\Advisor.exe

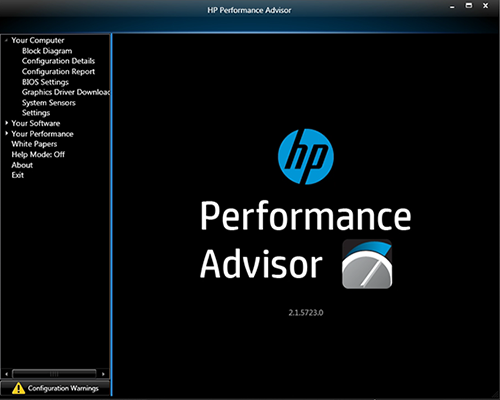

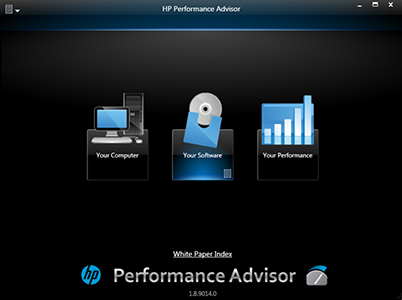

All the BIOS settings, GPU settings can be performed using this tool. Launch HP Performance Advisor and click on "Your Software".

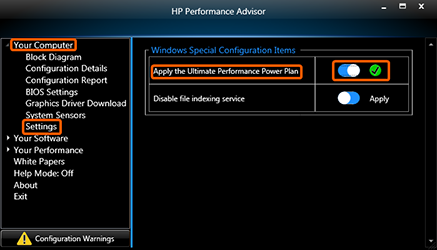

Setting the Power Plan

  • Your computer
  • Settings
  • Apply the Ultimate Performance Power Plan: Turn to ON

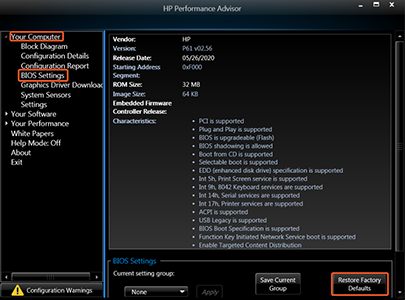

Performing Factory Default BIOS Settings

  • Your Computer
  • Bios Settings
  • Restore Factory Default

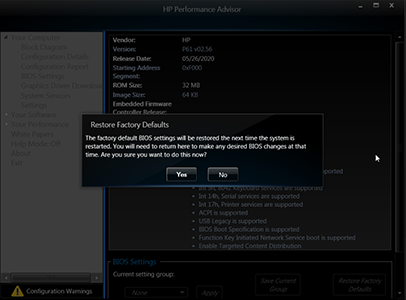

Finishing Factory Default BIOS Settings

  • Select Yes and Reboot

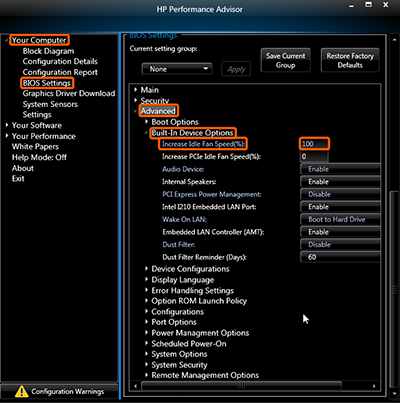

Setting Idle Fan Speed

  • Your Computer
  • Bios Settings
  • Advanced
  • Built-In Devices Options
  • Increase Idle Fan Speed (%): 100

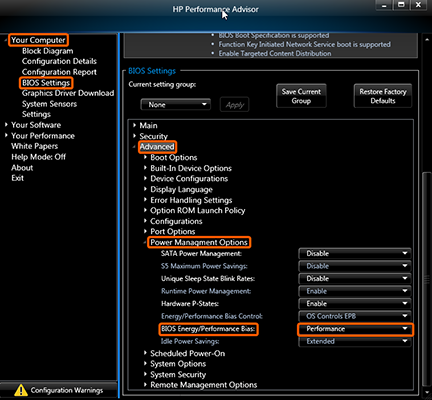

Setting BIOS Energy

  • Your Computer
  • Bios Settings
  • Advanced
  • Power Management Options
  • BIOS Energy/Performance Bias: Performance

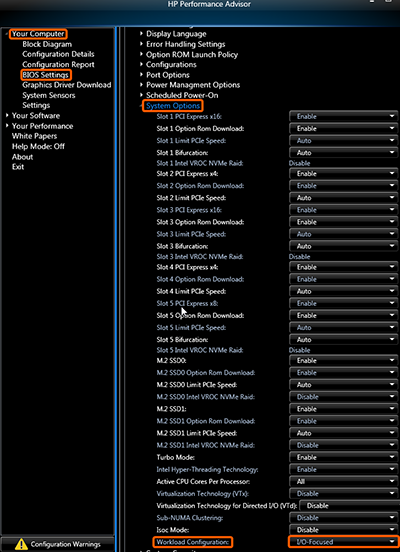

Setting Workload Configuration

  • Your Computer
  • Bios Settings
  • Advanced System Options
  • Workload Configuration: I/O Focused
The machine will restart after all changes have been made.

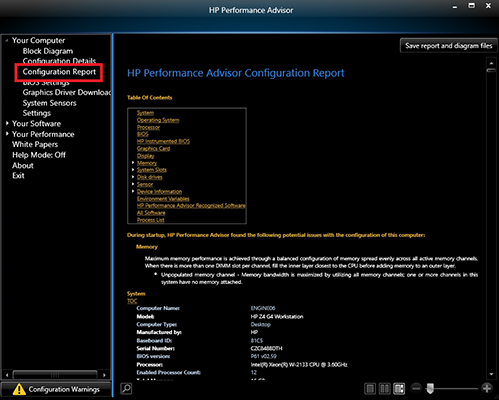

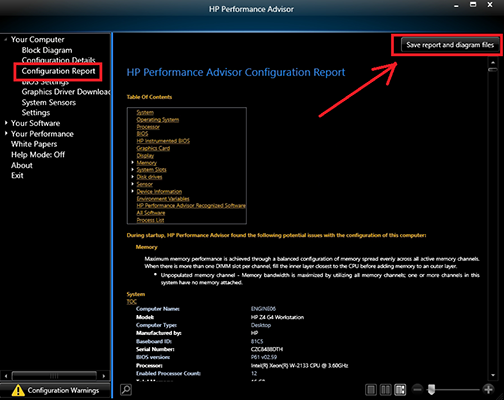

Exporting Configuration
